Alu Alu Foil
Alu Alu foil is also called cold formed blister foil, this foil consists of nylon, Alu, and PVC, and Alu Alu foil is cold stamping, such require that manufacturer shall have high accuracy stamping equipment to ensure quality of Alu Alu foil and avoid raw material waste, moreover, high quality Alu Alu foil can ensure that tablets can be packed safely, and tensile property of Alu Alu foil shall be strong enough to be not easily torn. Mould to be stamping Alu Alu foil can be verified so that diverse shape of Alu Alu foil can be offered.

In Alu Alu Foil cold forming progress, an aluminum-based laminate film is simply pressed into a mold by means of a stamp. The aluminum foil will be elongated and maintain the formed shape. These blisters are called cold form foil blisters. The principal advantage of cold form foil blisters is that the use of aluminum offers a near complete barrier for water and oxygen, allowing an extended product expiry date. Compared to thermoforming, cold form foil blisters is slower in speed of production.

General Description

Alu Alu foil is offered for heat sealing with blister foil. Alu Alu Foil offers an excellent multilayer in configuration for high sensitive range of pharmaceutical and generic medicines that are highly hygroscopic or light sensitive but not suitably packed with barrier plastic films.

Configuration of Alu Alu foil is usually OPA(Nylon) film 25μ / Adhesive / Aluminum Foil 45-60μ / Adhesive / PVC 60μ.
Other specifications in configuration of Alu Alu foil can be available to meet customers’ requirement.

Characters:

?   Full barrier against water vapor, gases, light;

?   Excellent Thermo-formability

?   High degree of Thermal stability

?   High Malleability for deep drawing blister cavities

?   Sealable with normal aluminum Foil

?   Effective anti-counterfeit packaging

Alu Alu Foil offered by Hanlin Company

Alu Alu foil

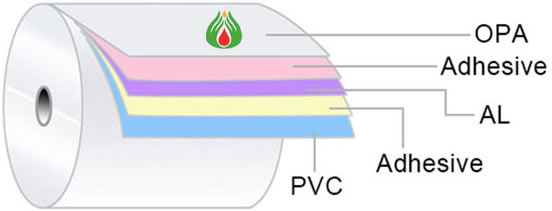

Alu Alu Foil Configuration

Alu Alu Foil Configuration

Technical Data of Alu Alu Foil:

Test Parameters

Units

Specification Value

Tolerance Limit

Final Value

Total Grammage

GSM

248

+/- 8%

228-267

Total Thickness

Micron

145

+/- 8%

133 - 157

Opa Film

Micron

25 (29 GSM)

+/- 8%

26-31

Adhesive

GSM

5

+/- 1 GSM

4 – 6

Aluminium Foil

Micron

45 ( 127 GSM)

+/- 8%

116 - 137

Adhesive

GSM

5

+/- 1 GSM

4 – 6

PVC Film

Micron

60 (84 GSM)

+/- 8%

77 - 91

Width MM

-

-

+/-1 MM Within Specs Limit



Bond Strength

GSM / 15MM

450

Min Value

On plus side

Seal Strength

GSM / 15MM

500

Min Value

On plus side

WVTR

G/ M2 / 24HRS 38°C

98% RH 1

Max Value

NIL

When customer asks inquiry for Alu Alu foil, he has to offer us width of Alu Alu foil, and whether the Alu Alu foil shall be printed or not. We are willing to offer customers Alu Alu foil sample without charge for his test, if customers test machine is bought from China, we are willing to send the asked sample to the test machine manufacture.

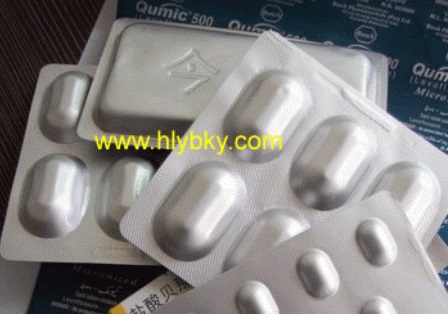

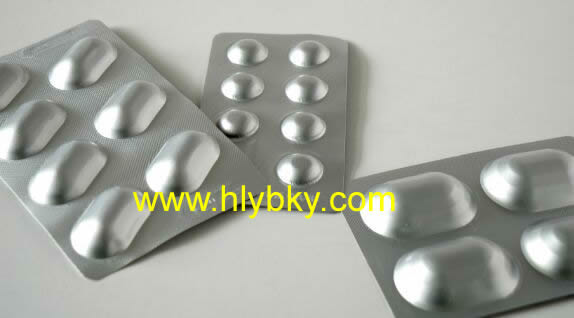

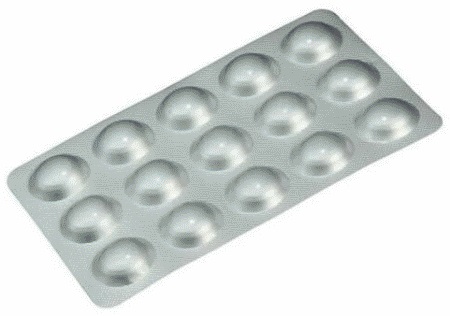

Alu Alu foil product photo

Alu Alu Foil
