Tropical Blister Foils

General description

Tropical blister foil is a combination of thermoformed plastic blisters and cold formed composite aluminum foil; blister packing can keep the blister dimension consistent, the area around the blister is slightly wider so that the cold-formed tropical blister composite film can be sealed with the thermoformed blister, such can offset the disadvantage of non-block light and poor water resistance in traditional aluminum plastic packaging, and tropical blister foil is gradually accepted by domestic pharmaceutical manufacturers.

Tropical blister foil consists of nylon, aluminum and adhesive, and in fact, tropical blister foil is a sheet of material combined of above three raw materials through special equipment in a certain temperature and pressure, and tropical blister foil is designed to improve barrier properties in traditional aluminum-plastic packaging. Only add aluminum-plastic composite film cover on the PVC blister back, and then a tropical blister aluminum packaging can be formed

Tropical blister foils is used to pack medicine with high value, tropical blister foils consist of Alu foil, Nylon, and Alu foil, and tropical blister foils is used to cover PVC packing to protect medicine.



Detailed Description

Typical Structure of tropical blister foil is OPA/AL/VC
Product Features
The product can prevent moisture, obstructing oxygen, light, and can effectively prevent gas, other media components to damage drugs to maximum and can extend itself life, particularly, can be adapted in the tropical areas.
PVC is used to be sealing.
High strength of mechanical property, good formability, and high strength heat sealing, such can be suitable for high-speed packaging machine. Tropical blister is a creative and improved approach for packaging of PVC blister, seal laminates against PVC blister to bring tropical blister. It has good barrier performance, and can protect against vapor, oxygen, UV rays, such is more economical than Cold formed foil and superior compared with sachet packaging though almost in the same cost. Meanwhile, your enterprise information and trademark can be shown in the flat laminates.

General technical data of tropical blister foil is as follows:

Common configuration

NY25/AL60/VC

NY25/AL65/VC

Grams per square meter

201

215

Mix proportion with PVC and PTP

3.45.81

3.65.81

Application scope

Deep blister

Shallow blister



Technical data of tropical blister foil offered by Hanlin is as follows:

Thickness

90-115mic

Alloy

8021

Type

roll

Treatment

composited

Temper

soft

Width

60-600mm

ID

76mm or 152mm

Certification

SGS/ISO/CFDA/DMF

Structure

OPA/AL/VC

Hanlin Tropical blister foil product

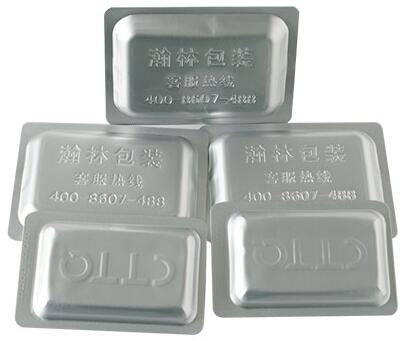

Tropical blister foil

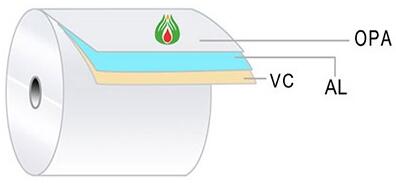

Tropical blister foil configuration

 Tropical blister foil configuration

When customer asks inquiry for tropical blister foil, he has to offer us width of tropical blister foil, and whether the tropical blister foil shall be printed or not. We are willing to offer customers tropical blister foil sample without charge for his test, if customers test machine is bought from China, we are willing to send the asked sample to the test machine manufacture.
