AL / PE laminate strip foil
Strip foil can be available with two models, one is soft and another is hard, soft strip foil features blister bubble, while hard strip foil features only two layer laminates. For soft strip foil, one side is cold formed and another side is aluminum foil. When pack an equal dimension of medicine, blister bubble of strip foil is a little larger than AL+PE, such cause cost of strip foil is higher.
To pack medicine with strip foil, both sides of the medicine are aluminum foil, such lead strip foil features excellence sealing property and excellent barrier to moisture, vapor or atmosphere, and aluminum strip foil can completely prevent passage of light or entry of unwanted odors. Each tablet can be individually packed and protected in aluminum strip foil.
Due to excellence sealing and barrier property and high cost of aluminum strip foil, then strip foil is often used to pack expensive medicine with unstable medical property.
Un-printed and printed
strip foils are available to meet customers’ requirements.
When customer asks inquiry
for strip foil, he has to offer us width of strip foil and whether
the strip foil shall be printed or not. We are willing to offer
customers strip foil sample without charge for his test, if
customers test machine is bought from China, we are willing to send
the asked sample to the test machine manufacture.
Composition:
Aluminum Foil Alloy : AA
1200 /AA 1235 /AA8011
Aluminum Foil Finish : Matt /Bright
Temper (Soft / Hard) : Soft
Bond Strength : 200 grams/ 15 mm (min.)
Lamination Surface : Matt / Bright
Sealing Strength : 600 grams / 15 mm.
Sealing Surface : LDPE to LDPE (Poly to poly)
Properties of Printed Side :
Color : 1-5
Ink Adhesion Test : No ink lifting
Printing Surface : Matt /Bright (non LDPE side)
Repeat Length Tolerance : +/- 0.5 mm
Registration Tolerance : +/- 0.5 mm
Printing : As per design / artwork
Print Primer : 0.25 gsm max.
Other: Abrasion, water and heat resistan |

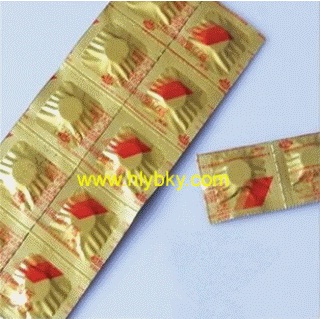

Aluminum strip foil
product photo

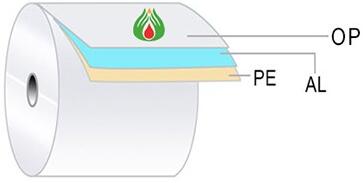

Aluminum strip foil
configuration
 |
|
Data
Sheet of strip foil are as follows:
|
Composition of Aluminum Foil |
|
Thickness of Aluminum Foil (mm) |
0.03 |
0.04 |
Thickness Tolerance (+/-8%) in mm |
+/- 0.0024 |
+/- 0.0032 |
Al. Foil weight (gsm) |
81(+/-8%) |
108 (+/-8%) |
Pinholes in Al. (no/sqm) max. |
2 |
0 |
|
Composition of Poly (LDPE) |
|
Poly thickness (mm) |
0.0375 |
0.05 |
Tolerance (mm) +/-5% |
0.001875 |
0.0025 |
Poly weight (gsm) |
34.04+/-5% |
46+/-5% |
Bursting Strength-Laminate(kg/cm2) |
2.4 |
2.9 |
|
Dimensions:
Reel Width (Unprinted) : 60 - 870 mm
Reel Width (Printed) : 60 - 750 mm
Width Tolerance : +/-0.5 mm
Core Material : Aluminum / Plastic
Core Diameter : 76 mm
Reel Diameter / Reel OD : 230-300 mm (standard)
Reel OD Tolerance : +/- 5 mm
Type of Joint : Single Butt / Double Butt / Lap Joint
Paper Tape/ Plastic Tape
Type of Tape used for Joint : Red, Brown or Black color
Recommended Operating Conditions:
Temperature (ºC): 150ºC
Dwell Time: 0.5 seconds (min.) |

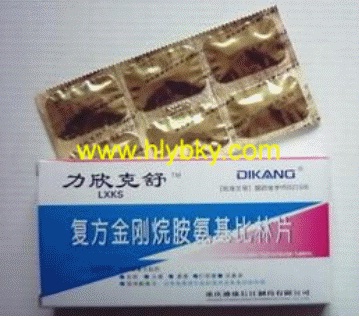

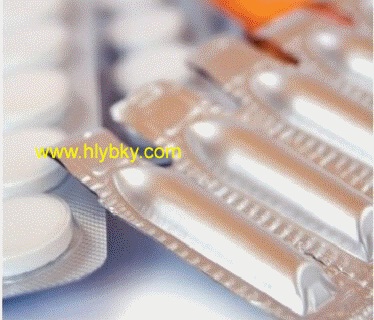

Strip foil product photos

|
